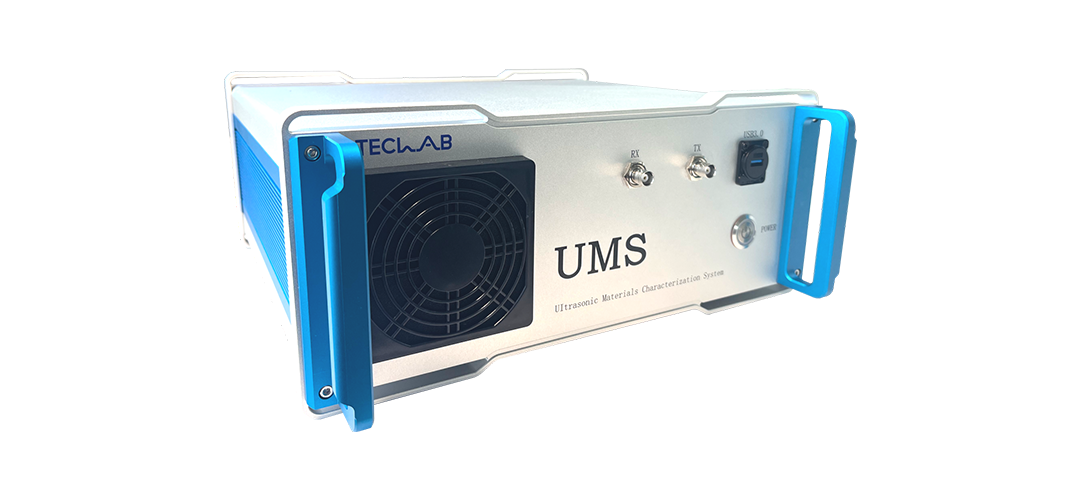

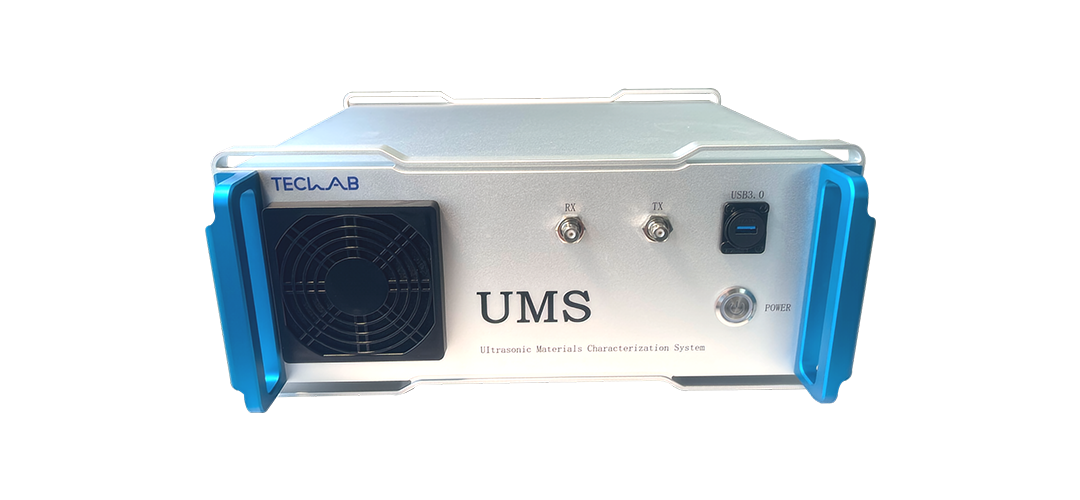

Advanced Ultrasonic Material Characterization System UMS
summary
The advanced ultrasonic material characterization system can be used for material performance characterization. It can measure the longitudinal and transverse wave velocities and elastic modulus of materials, analyze attenuation coefficients, etc. The system host uses proprietary software UMSoft to set system parameters, collect, analyze, and process data. The measurement results include longitudinal wave velocity, transverse wave velocity, Young's modulus, bulk modulus, shear modulus, Poisson's ratio, and attenuation coefficient. For coarse-grained, powder metallurgy, or 3D printing additive manufacturing sample materials, UMS's unique pulse train excitation and weak signal local amplification functions make it easy to measure most isotropic materials. The UMS testing method complies with the national standard GB/T 38897-2020.
Main technical parameters
|
function |
Ultra low noise preamplifier |
|
Excitation waveform |
Negative square wave |
|
Pulse voltage |
10V to 230 V |
|
frequency range |
0.5-30 MHz |
|
Receiving gain |
0 dB to 80 dB |
|
Local gain |
Maximum 80dB, separate amplification function for secondary echo* |
|
Filter settings |
All, 10 MHz, 5 MHz, 2.25MHz, 1MHz |
|
wave form |
Full rectify, + half rectify, - half rectify, or RF |
|
Time resolution of sound |
12.5ns (optional 1ns) |
|
Measurement mode |
Echo method |
|
Sampling accuracy |
8 bits |
|
Interface |
2 BNC interfaces, or 2 SMB interfaces, with automatic port recognition |
|
load |
50 ohms |
|
Longitudinal wave transducer |
5MHz [customized according to material type] |
|
Transverse wave transducer |
5MHz [customized according to material type] |
|
Transverse wave coupling agent |
High viscosity, 4 ounces per tube |
|
The signal line |
BNC Mirodot or SMB Mirodot |
UMSoft software
• Control the advanced ultrasonic material characterization system to set parameters
• Analyze and calculate the longitudinal and transverse wave velocities
• Analyze and calculate Young's modulus, Poisson's ratio, shear modulus, and bulk modulus of elasticity
• Analyze and calculate the attenuation coefficient
• Draw the real-time curve of sound velocity time variation (optional)
• Secondary echo amplification function separately*
• Output the measurement report directly to Word
software interface
