High frequency ultrasound microscope uScan
The μ SCAN ultrasonic scanning microscope is a three-axis automated ultrasonic testing system. Mainly used for testing flat specimens or workpieces.
The bandwidth of the ultrasound host can range from 1 MHz to 100 MHz, and the sampling frequency can reach up to 250 MHz. The imaging resolution can range from 0.5 μ m to 4000 μ m.

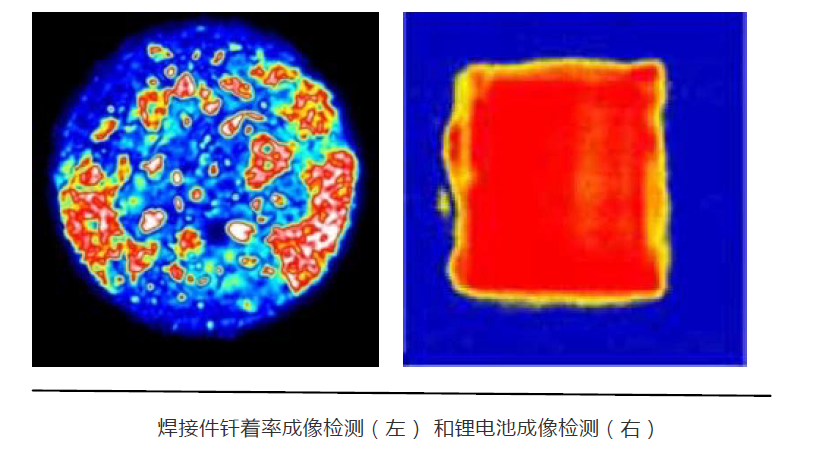

Support echo detection and transmission detection. Different scanning ranges can be selected based on the size of the tested workpiece:
|
model |
long |
wide |
high |
|
X1 |
200mm |
100mm |
100mm |
|
X2 |
350mm |
200mm |
110mm |
|
X3 |
500mm |
330mm |
100mm |
|
X4 |
900mm |
600mm |
250mm |
|
X5 |
1500mm |
1200mm |
500mm |
|
X6 |
Customized on demand |
||
Software function customization service
Probe accessory selection
Installation, debugging, and training services
Sample testing service
Special parameter customization service
OEM customization service
|
|
name |
X2 type |
|
1 |
scanning system |
X. Y-axis: driven by servo motor; Z-axis: driven by stepper motor; |
|
2 |
Scanning range |
260mm x 100 mm x 50 mm |
|
3 |
Ultrasonic transmitter and receiver |
Bandwidth 1-65 MHz |
|
4 |
High speed data acquisition card |
Sampling frequency 500MHz |
|
5 |
Ultrasonic probe |
Standard configuration includes one 15MHz 0.75in probe; |
|
6 |
IPC |
I5 processor, 4GB memory, 1TB hard drive, Win7 32-bit operating system. |
|
7 |
monitor |
A 21.5-inch LCD monitor |
|
8 |
Water supply and drainage system |
Manually control the filling and drainage process of the sink system (optional) |
|
9 |
Detection software |
Immersion ultrasonic testing software |
|
Serial number |
name |
X3 type |
|
1 |
scanning system |
X. Y-axis: driven by servo motor; Z-axis: driven by stepper motor; |
|
2 |
Scanning range |
1000mm x 1220 mm x450 mm |
|
3 |
Ultrasonic transmitter and receiver |
Bandwidth 1-65 MHz (upgradable to 300 MHz) |
|
4 |
High speed data acquisition card |
Sampling frequency 500MHz (upgradable to GHz) |
|
5 |
Ultrasonic probe |
Standard configuration includes one 15MHz 0.75in probe; (Optional probe above 100 MHz) |
|
6 |
IPC |
I5 processor, 4GB memory, 1TB hard drive, Win7 32-bit operating system. |
|
7 |
monitor |
A 21.5-inch LCD monitor |
|
8 |
Water supply and drainage system |
Manually control the filling and drainage process of the sink system (optional) |
|
9 |
Detection software |
Immersion ultrasonic testing software |
|
Serial number |
name |
X6 type |
|
1 |
scanning system |
X. Y-axis: driven by servo motor; Z-axis: driven by stepper motor; |
|
2 |
Scanning range |
1000mm x 1220 mm x450 mm |
|
3 |
Ultrasonic transmitter and receiver |
Bandwidth 1-65 MHz (upgradable to 300 MHz) |
|
4 |
High speed data acquisition card |
Sampling frequency 500MHz (upgradable to GHz) |
|
5 |
Ultrasonic probe |
Standard configuration includes one 15MHz 0.75in probe; (Optional probe above 100 MHz) |
|
6 |
IPC |
I5 processor, 4GB memory, 1TB hard drive, Win7 32-bit operating system. |
|
7 |
monitor |
A 21.5-inch LCD monitor |
|
8 |
Water supply and drainage system |
Manually control the filling and drainage process of the sink system (optional) |
|
9 |
Detection software |
Immersion ultrasonic testing software |
