Array Electromagnetic Ultrasonic Testing System EMAPA
 |
 |
 |
|
|

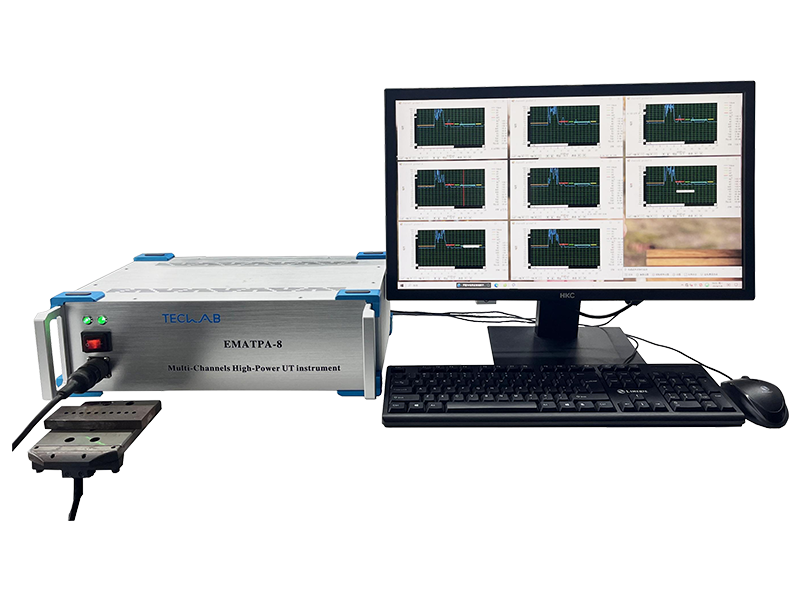

EMAPA Array Electromagnetic Ultrasonic Instrument |

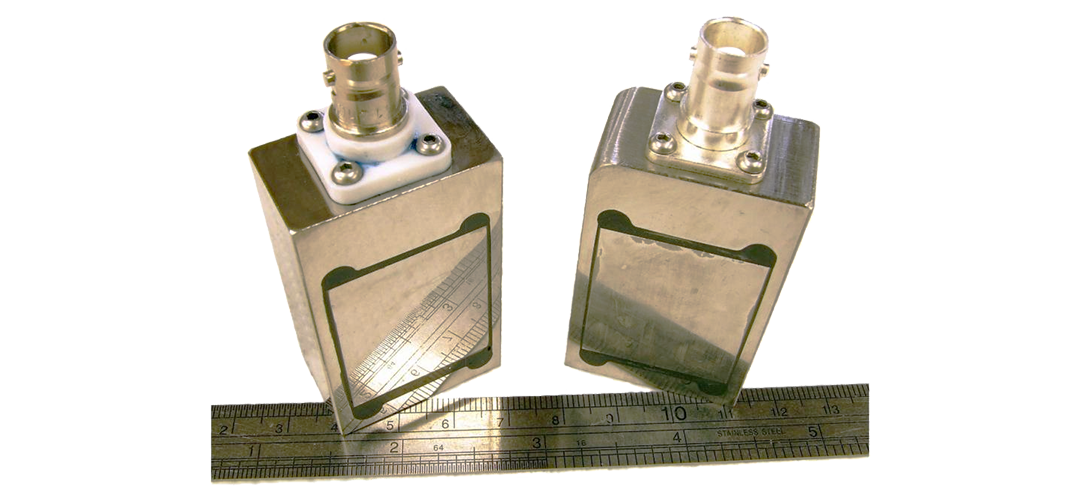

EMAT electromagnetic ultrasonic transducer |

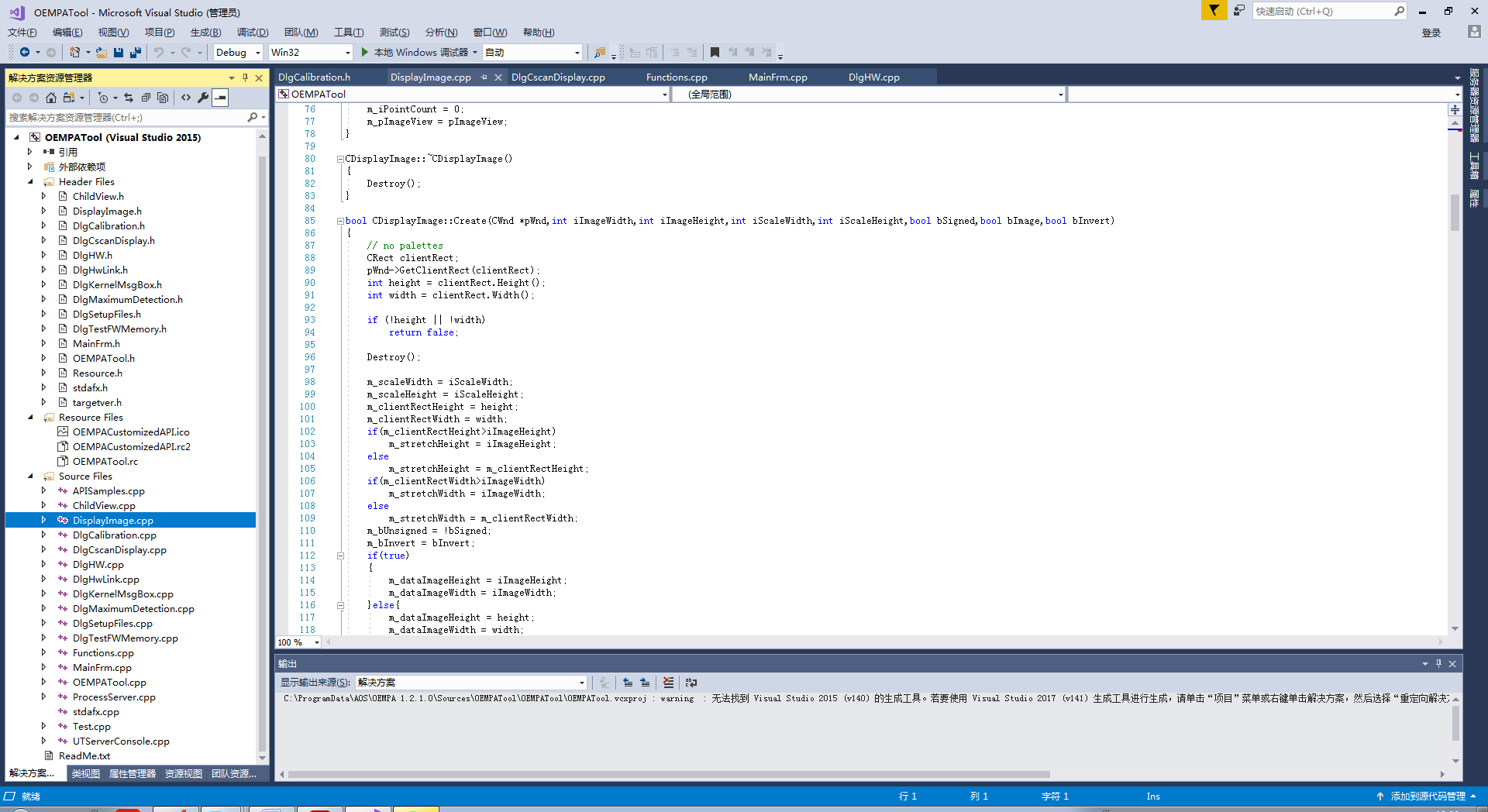

EMAPA-SDK Software Development Kit |
|
Number of channels |
16 (echo mode) maximum Maximum 8 channels for oblique incidence Other channel numbers can be customized according to needs |
Sensor model |
EMAT-T thickness probe EMAT-D flaw detection probe Array probe customized according to requirements |
|
Frequency bandwidth |
1MHz -6MHz (customizable) |
Instrument operating temperature |
-20 - 60ºC |
|
Repetition frequency |
3000Hz maximum |
Probe operating temperature |
Room temperature: -20 ℃~+160 ℃ High temperature: -20 ℃~+550 ℃ air-cooled (5s) |
|
Lift off height |
Thickness measurement 4mm (maximum) Flaw detection 0.6 mm |
Tilt angle |
Maximum 20 |
|
sluice gate |
3 (adjustable) |
Sound wave mode |
Direct incident transverse wave (2-6 MHz) Customizable oblique incidence SV wave (1-2MHz) |
|
phase |
Each channel excitation phase is adjustable, with a step of 5ns |
Pulse generator |
Transient power 6kW Peak to peak 2600V |
|
Gain range |
0-80dB 0.1dB/1dB step |
detection mode |
Positive envelope detection/RF wave/positive half wave/negative half wave |
|
Sound speed range |
1000~9999 m/s |
Collection depth |
150 USD/channel (customizable) |
|
A/D converter |
50MHz |
Excitation method |
N52 permanent magnet |
|
filtering algorithm |
Self related |
signal processing |
FIR digital filter, 64th order |
|
Power Supply |
220VAC 50W |
Number of pulses |
Adjustable 1-10 |
|
data interface |
TCP/IP（1000/100M） Simultaneously transmit 8 channels of raw waveforms 150us length/frame, maximum 300 frames/second |
Size/Weight |
460mm(L)*276mm(W)*146mm(H) Changes may be made based on configuration and customization requirements without prior notice |
|
storage capacity |
32G |
pattern |
Automatic/semi-automatic/manual |
