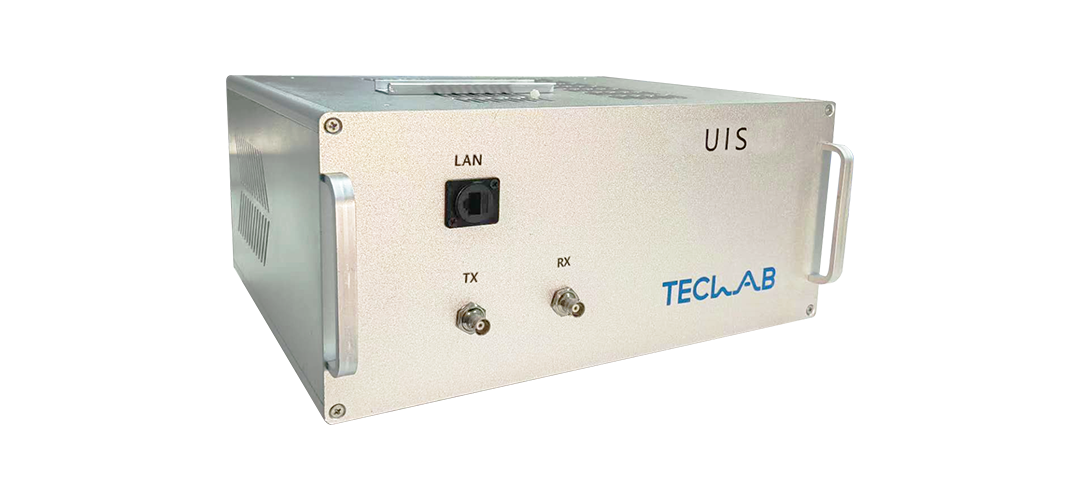

Industrial Ultrasonic Integrated Module (UIS)
Typical application scenarios
 |
 |
 |

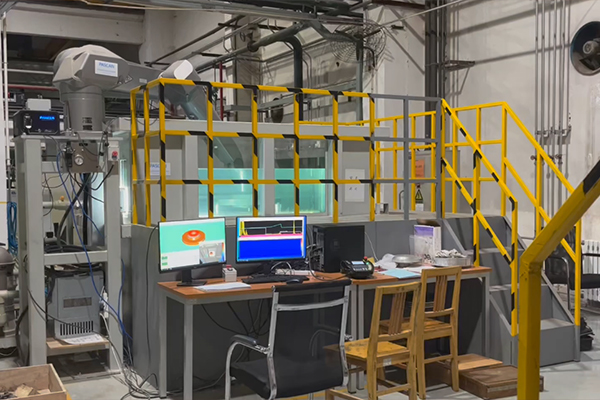

| Integration of Water Immersion Ultrasonic C-scan Imaging Detection System Based on UIS | Integration of hollow shaft ultrasonic testing system in railway industry based on UIS-8S or 8P | Integration of Tube Rod Rotation Ultrasonic Testing System Based on UIS-8P/8S |
technical parameter
|
Product Name |
UIS |
|
Excitation waveform |
square wave |
|
Excitation voltage |
350 V |
|
Receiving bandwidth |
600 kHz – 27 MHz |
|
Receiving gain |
0 – 80 dB |
|
Sampling parameters |
200 MHz |
|
communication interface |
LAN |
|
Applicable to |
Integration of Industrial Ultrasonic Testing System |
|
characteristic |
High stability and high signal-to-noise ratio |
|
model |
UIS-8S |
UIS-8P |
|
Number of channels |
Starting from 8 channels |
Starting from 8 channels |
|
Working mode |
switch |
switch |
|
Excitation waveform |
square wave |
square wave |
|
Excitation voltage |
350 V |
350 V |
|
Receiving bandwidth |
600 kHz – 27 MHz |
600 kHz – 27 MHz |
|
Receiving gain |
0 – 80 dB |
0 – 80 dB |
|
Sampling parameters |
two hundred MHz@16bits |
two hundred MHz@16 bits |
|
communication interface |
LAN |
LAN |
|
Applicable to |
Integration of industrial detection systems with low detection speed requirements and monitoring systems |
Integration of industrial testing systems with high detection speed requirements and rapid monitoring system integration |
|
characteristic |
Stable, high signal-to-noise ratio |
High signal-to-noise ratio, high stability |
