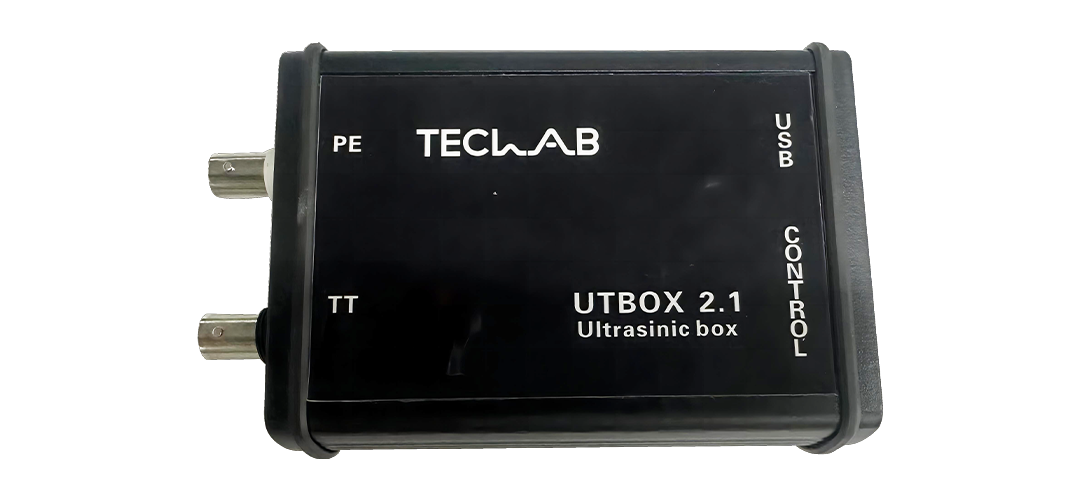

Single channel ultrasound integrated module UT-BOX
UT-BOX is a complete ultrasonic testing device suitable for all ultrasonic measurements, and due to many additional digital inputs/outputs and internal processors, it can be used as a controller for more complex devices. UT-BOX can work in conjunction with devices such as multiplexers or scanners. There is a channel pulse generator and receiver implemented in the box, which can use one or two sensors (one for transmitting and the second for receiving).
Technical parameters:
|
Pulse voltage |
0V to 360V (positive pulse) |
|
Working mode |
PE or TT switchable |
|
Receiving bandwidth |
0.5 MHz-25 MHz（-3 dB） |
|
Input impedance |
50 ohms |
|
sampling |
Maximum 100 MHz sampling frequency, 8-bit sampling |
|
Input amplifier gain |
-31 dB to 65dB (step 0.5dB) |
|
Switchable preamplifier |
+ 24dB |
|
Switchable attenuator |
-20 dB |
|
Output impedance |
50 ohms |
|
PRF |
Can be set |
|
communication interface |
USB-DB15 interface |
|
Switchable filter (-3 dB) |
0.5-6MHz，0.5-10MHz，0.5-15MHz，0.5-25MHz，1-6MHz， 1-10MHz，1-15MHz，1-25MHz，2-6MHz，2-10MHz，2-15MHz，2-25MHz， 4-6MHz，4-10MHz，4-15MHz，4-25MHz |
